Part Number | STL File Name | Quantity |
|---|---|---|
1 | Body | 1 |
2 | Engine | 1 |
3 | FramePS | 1 |
4 | BrakeF | 2 |
5 | Bottom_Cover | 1 |
6 | AxleF | 1 |
7 | FrameDS | 1 |
8 | TireF | 2 |
9 | Rim | 4 |
10 | HeaderDS | 1 |
11 | MirrorDS | 1 |
12 | TireR | 2 |
13 | BrakeR | 2 |
14 | Spring | 2 |
15 | RearEnd | 1 |
16 | D_Shaft | 1 |
17 | HeaderPS | 1 |
18 | MirrorPS | 1 |
Assembled Measurements (approx.):
​
Length: 4.19 in./10.7 cm.
Width: 2.93 in./7.5 cm.
Height: 2.00 in./5.1 cm.
​​​
All pieces have been printed and test-fitted. Glue required for assembly.
​
Default slicer (standard quality) settings were used for testing, but changed to high quality for the final print on most pieces.
​
Setup used for testing:
​
Bamboo P1S
ELEGOO PLA Plus Filament 1.75mm (Gray)
​

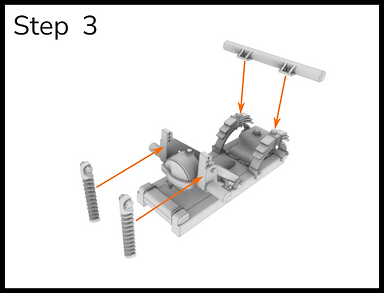

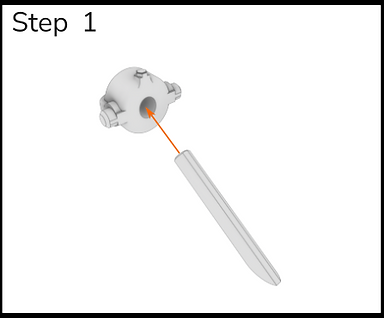

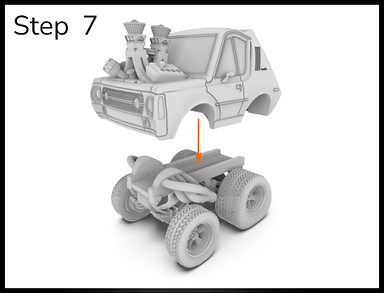

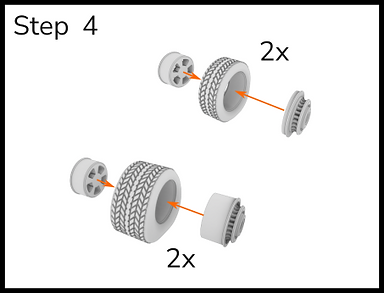

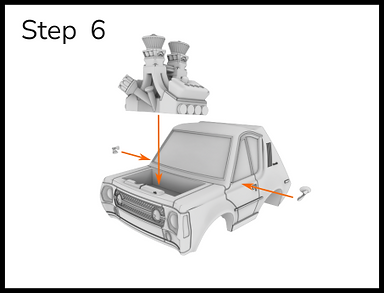

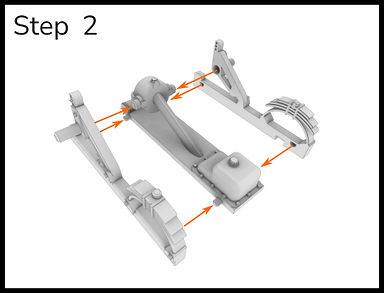

Assembly Instructions:
Thanks for your purchase! Hope you enjoyed the build. Follow us on Instagram for latest news and projects.
