Part Number	STL File Name	Quantity
1	Body	1
2	Bottom_Cover	1
3	Spring1	2
4	D_Shaft1	2
5	D_Shaft2	2
6	Frame_Guard	1
7	Axle	2
8	Rim	4
9	Tire	4
10	Frame_Side	2
11	Spring2	2

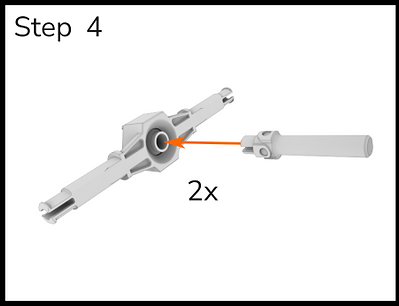

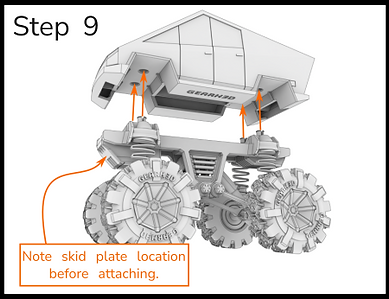

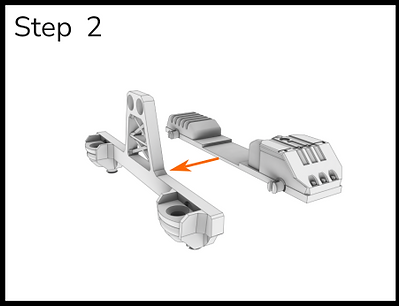

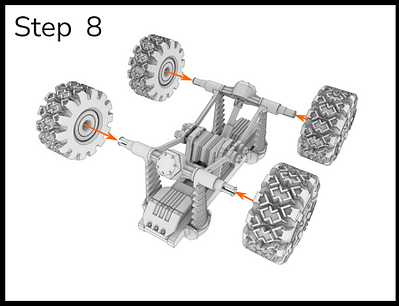

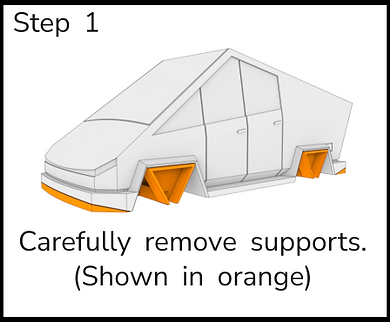

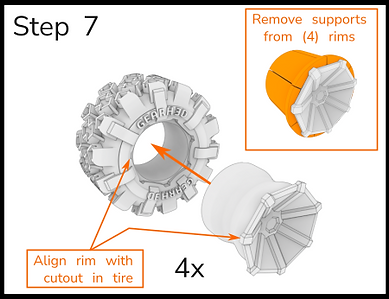

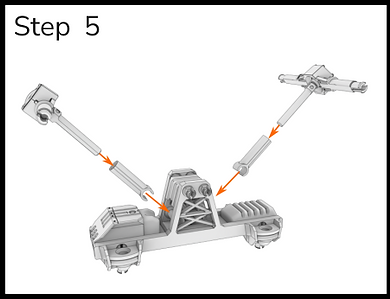

Assembly Instructions:

Assembled Measurements (approx.):

Length: 6.12 in./15.5 cm.

Width: 4.31 in./11 cm.

Height: 5 in./13 cm.

All pieces have been printed and test-fitted. They snap together with no hardware or glue required. However, glue is recommended if the fit seems too loose or if the model will be handled frequently.

Default slicer settings were used for testing, but changed the layer height to 0.1 mm for the final print on certain pieces (body, tires, rims).

Setup used for testing:

Bamboo P1S

ELEGOO PLA Plus Filament 1.75mm (Gray)

Thanks for your purchase! Hope you enjoyed the build. Follow us on Instagram for latest news and projects.
