Part Number	STL File Name	Quantity
1	Body	1
2	Bottom_Cover	1
3	Spring	2
4	D_Shaft	2
5	D_Shaft2	2
6	Axle	2
7	Frame_Guard	1
8	Rim	4
9	Tire	4
10	Frame_Side	1
11	Frame_Side2	1
12	Spring2	2
13	Engine	1
14	Pulleys	1
15	Header	1
16	Header2	1

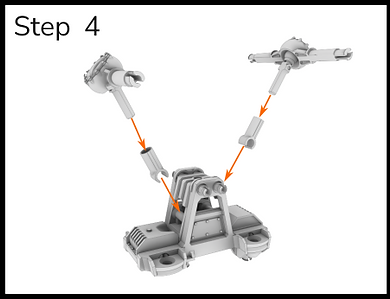

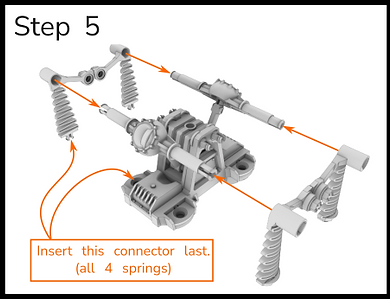

Assembly Instructions:

Assembled Measurements (approx.):

Length: 4.25 in./11 cm.

Width: 4.25 in./11 cm.

Height: 4.88 in./12.5 cm.

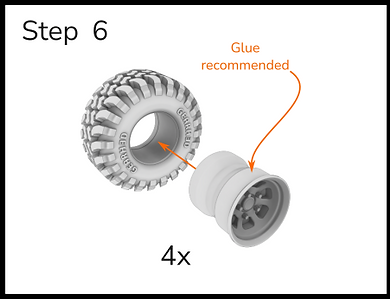

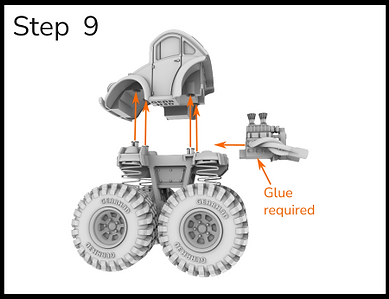

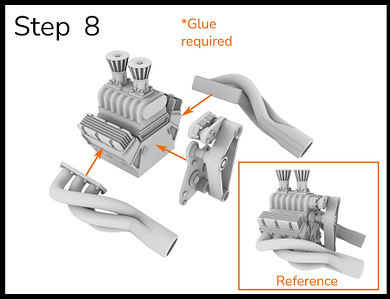

All pieces have been printed and test-fitted. Everything but engine snaps together. The engine will require glue and also recommend glue for the tire and rim connection.

Default slicer settings were used for testing, but changed the layer height to 0.1 mm for the final print on certain pieces (body, tires, rims).

File has been exported in preferred

print orientation.

Setup used for testing:

Bamboo P1S

ELEGOO PLA Plus Filament 1.75mm (Gray)
